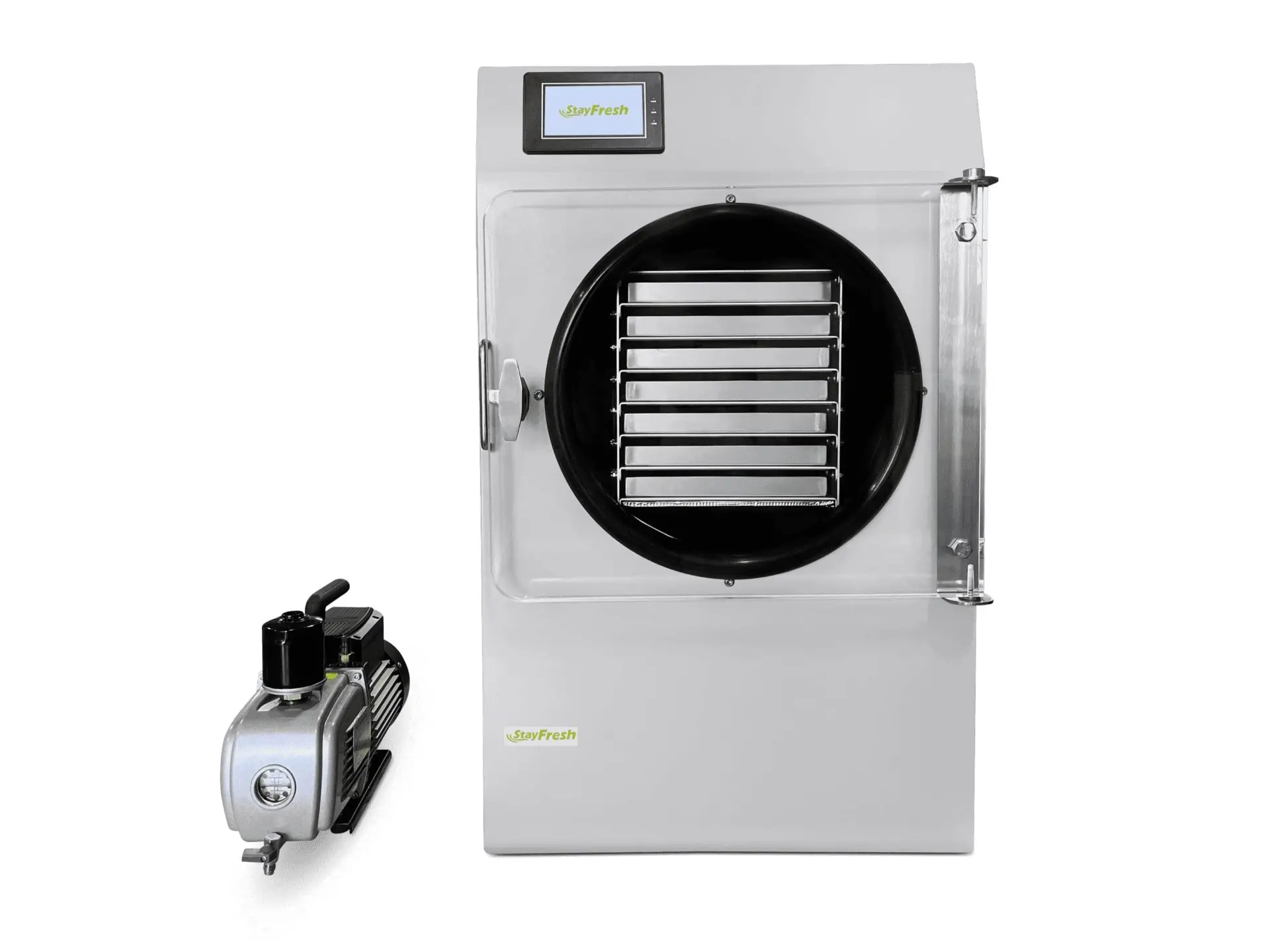

High-Capacity 7 Shelf Freeze Dryer with Standard Pump – Reliable Commercial Preservation Solution

Discover the Ultimate Freeze Drying Solution

Enhance your food preservation capabilities with our Commercial Grade 7 Shelf Freeze Dryer with Standard Pump. This state-of-the-art machine combines advanced technology and user-friendly features to ensure the highest quality of freeze-drying for both beginners and experienced users.

Key Features:

• Patented Smart Freeze Drying Algorithm: Ensures optimum drying conditions for various types of food.
• Multiple Drying Methods: Tailored for both beginners and advanced users.
• Motorized Ball Valve: Prevents oil contamination effectively.
• RTD Temperature Sensors: Provides precise temperature control for optimal drying.
• Industrial Grade Construction: Glass-to-metal seal feed-through for durability and longevity.
• Stainless Steel/Aluminum Build: High-quality materials for major parts ensure robustness.
• Independent Vacuum Valve: Facilitates pressure normalization during operation.
• Candy Mode: Specialized setting makes freeze-drying sweets easy and efficient.
• Stainless Steel Drain Line: Ensures reliable drainage.

Model Specifications:

• Ice Capacity: 12 lb.
• Food Processing Capacity: Up to 18 lb. in one batch.
• Main Drying Time: 16 – 30 hours for 8 lb. of food.
• Shelf Spacing: 1.2 inches.
• Included Trays: 7 trays, each measuring 8 in. x 20 in. x 0.75 in.
• Shelf Temperature Range: -50F to 150F.
• Freeze Dryer Weight: 170 lb (vacuum pump excluded).
• Dimensions: W 20 in. x D 26 in. x H 31 in.
• Cold Trap Temperature: -40F.

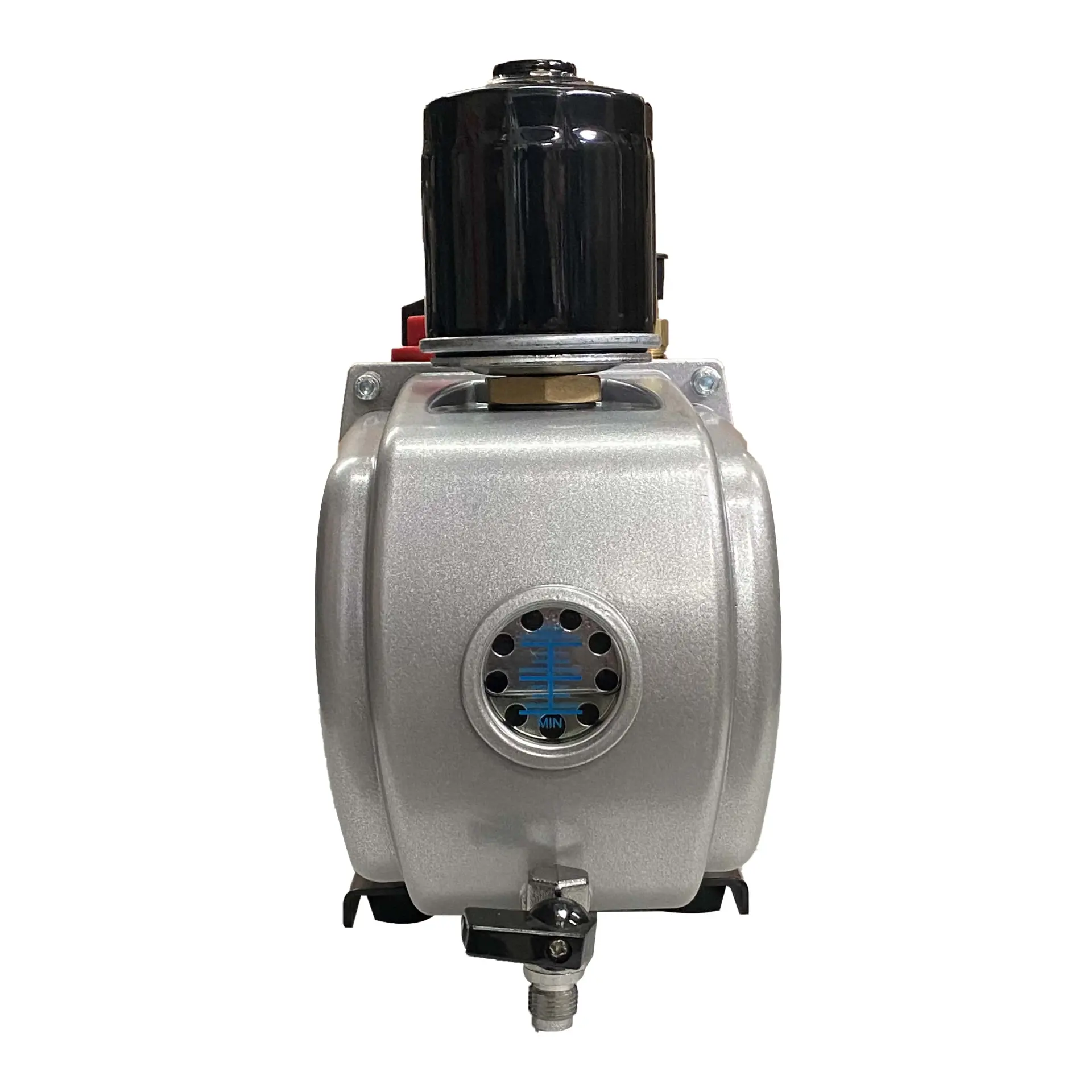

• Vacuum Pump Weight: 36 lb.
• Vacuum Pump Dimensions: W 5.5 in. x D 15.5 in. x H 10 in.
• Vacuum Pump Flow Rate: 7.2 CFM.

Installation Requirements:

• A dedicated 15/20 Amp electrical outlet is recommended.

Free Accessories Included:

• An oil filter
• An impulse sealer
• 50 mylar bags

Shipping Information:

The freeze dryer is shipped in two boxes on a pallet:

• Freeze Dryer Box: 180 lb, 25″ x 29″ x 36″
• Accessory Box: 45 lb, 18″ x 8.5″ x 14.5″
• Pallet Size: 40″ x 26″ x 41″
• Total Shipment Weight: Approximately 260 lb

Download User Manual
