5 Core 3.5 Inch Compression Driver Tweeter | 220W Peak, 8 Ohm Titanium Diaphragm

Product Description

Upgrade your audio experience with the 5 Core 3.5 Inch Compression Driver Tweeter. This high-performance driver brings powerful and clear audio projection with a peak power of 220W and 110W RMS power, ensuring your sound reaches every corner of the venue. It’s perfect for live sound PA systems, delivering crisp and detailed sound reproduction across a wide frequency response range of 1.5kHz to 20kHz.

Featuring a robust 1.75-inch voice coil, this compression driver is built to handle high output without overheating, making it ideal for continuous use. Its standard 8-ohm impedance provides excellent compatibility with most amplifiers and audio systems, ensuring a seamless integration into your setup.

Constructed from a durable metal body and a titanium diaphragm, the 5 Core Compression Driver Tweeter is designed to last. The large ferrite magnet enhances durability and performance, enabling the device to withstand harsh conditions while delivering extremely loud and clear sound.

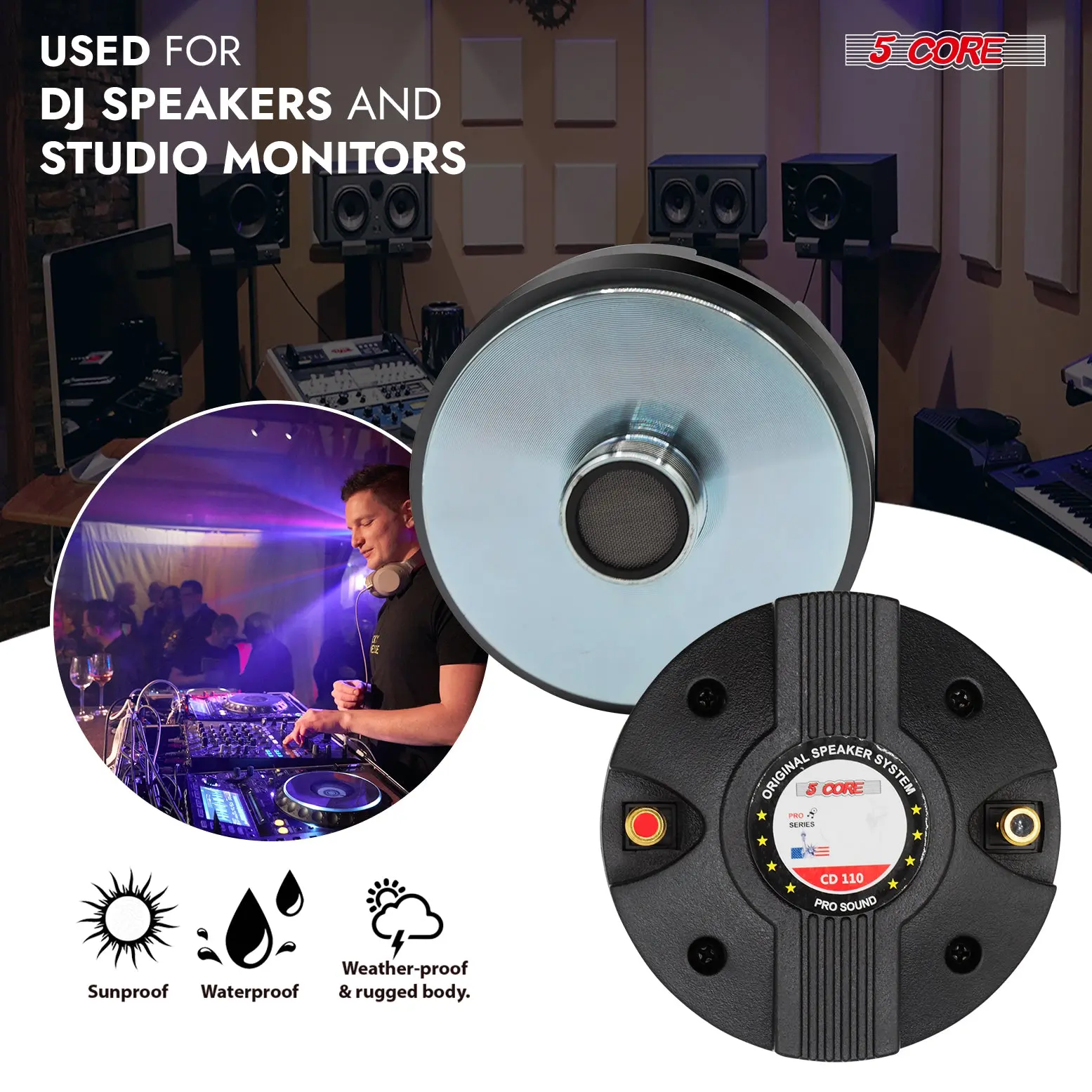

Installation is a breeze with the standard 1″ throat twist-on design. Whether you’re upgrading your DJ equipment or enhancing your PA system, this compression driver is your go-to choice for high-quality sound.

Key Features:

• Powerful Compression Driver: 220W Peak, 110W RMS power for loud, clear audio projection.
• Wide Frequency Response: 1.5kHz-20kHz for clear vocals and crisp instrumental sounds.
• Better Compatibility: Standard 8-ohm impedance, compatible with most amplifiers and audio systems.

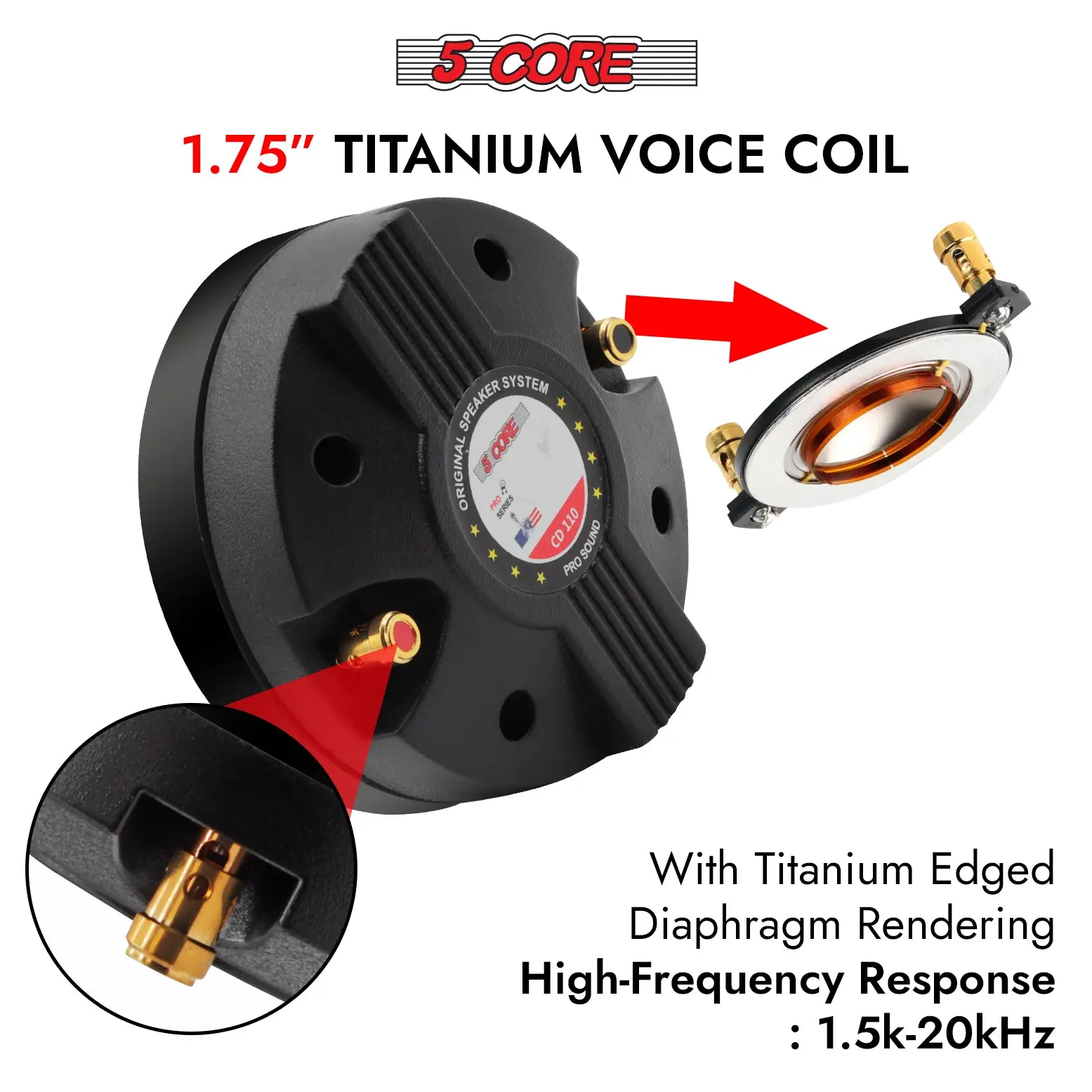

• High Output Voice Coil: 1.75″ voice coil for high output without overheating, ideal for live sound applications.

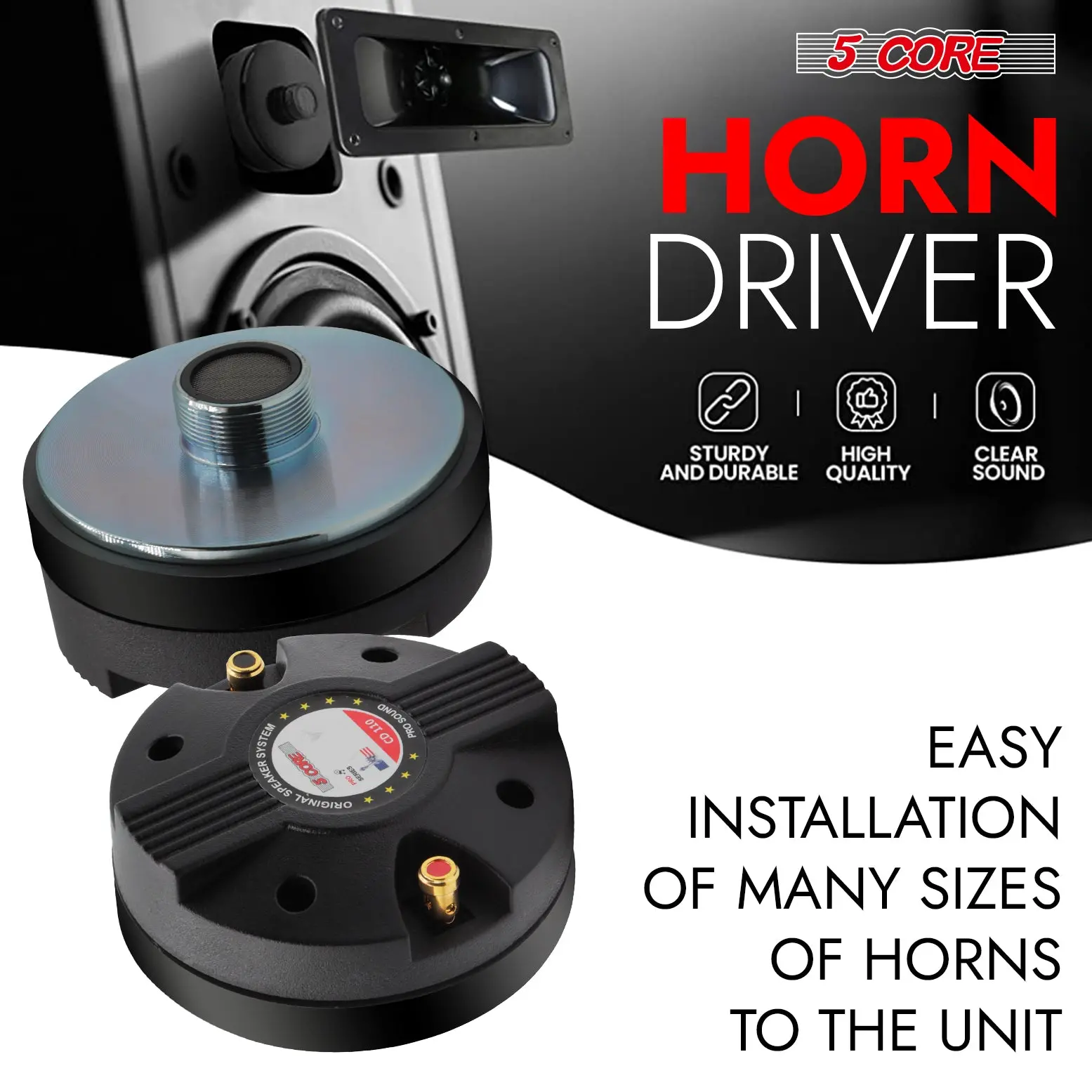

• Easy Installation: Standard 1″ throat twist-on design for quick setup.

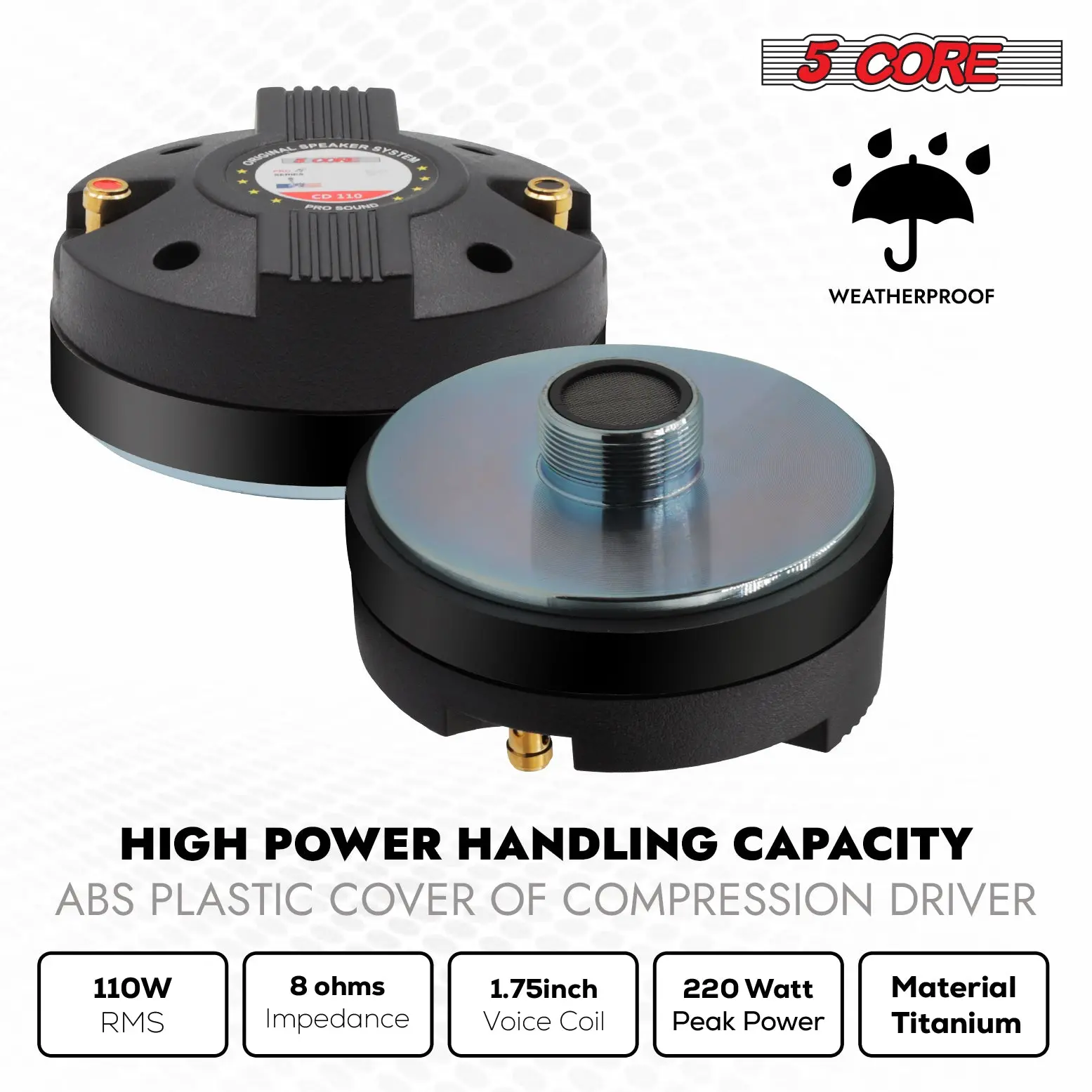

Product Specifications:

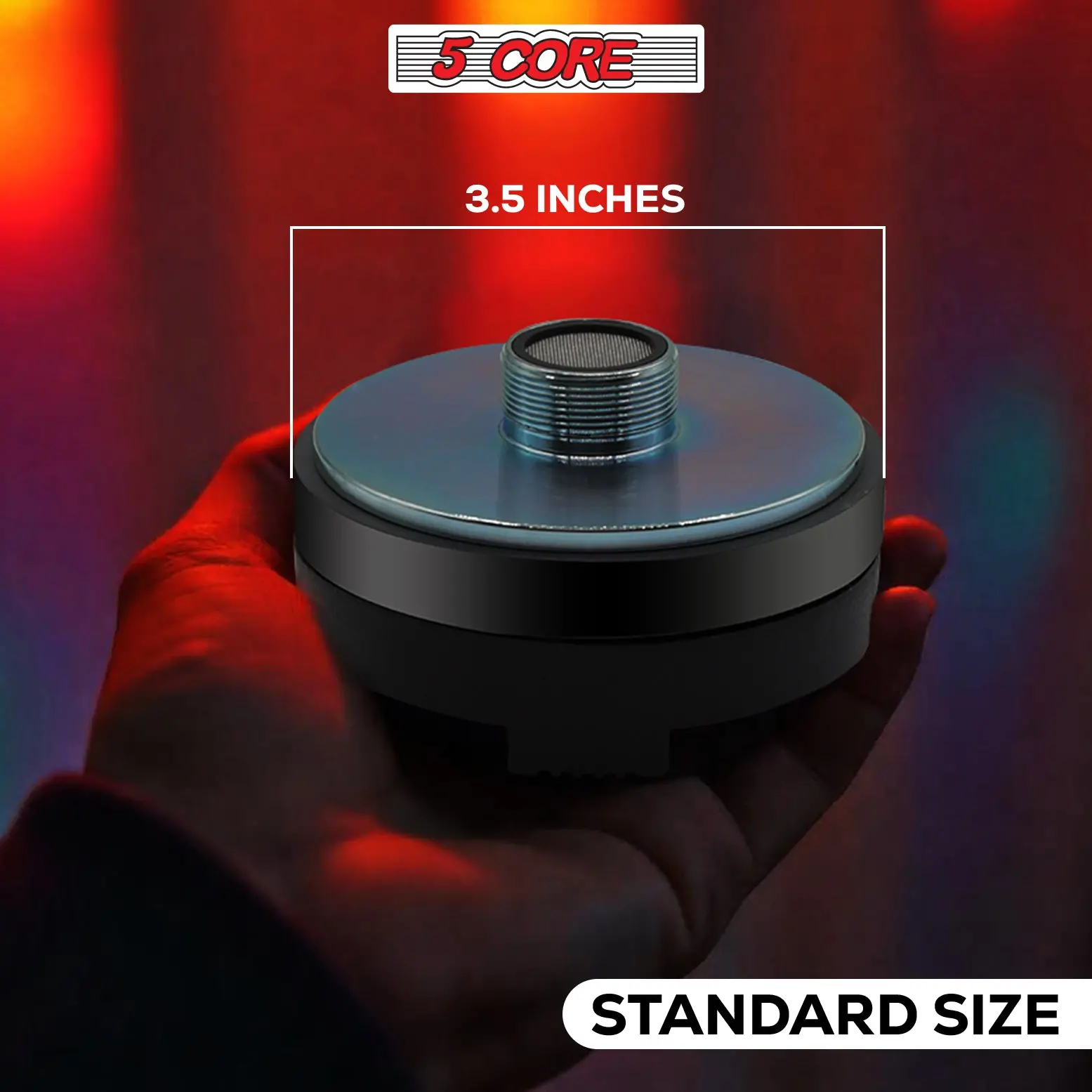

• Driver Size: 3.5 Inch
• Throat Size: 1 Inch
• RMS Power: 110 Watt
• Peak Power: 220 Watt
• Frequency Response: 1.5kHz-20kHz
• Impedance Rating: 8 Ohms
• Magnet Weight: 18 Oz
• Magnet Size: 110mm
• Material: Titanium
• Weatherproof: Yes
• Voice Coil: 1.75″
• Weight: 3.5 Lb
• Sensitivity: 105db

Package Includes:

• 1x Compression Driver

About 5 Core

5 Core, ISO Certified and headquartered in California with a warehouse in Ohio, USA, has been offering over 400 products since 1984. Our products are tested and certified to ensure the highest quality and reliability.

Discover more about our weatherproof tweeter compression drivers and other products at 5 Core.
